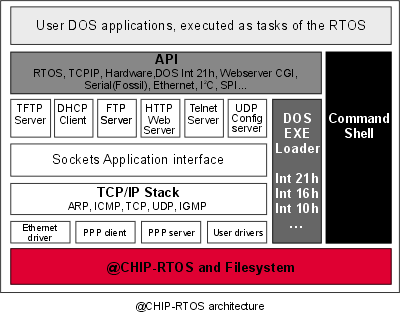

RTOS
Tasks: 35
Sum of Semaphores, Timers, Event groups: 60
Message exchanges: 10
These are the entire RTOS resources.
Some of them are used by the RTOS itself.
See RTOS API documentation for available user resources.
RTOS Filesystem for
Internal ramdisk
Internal flashdiskdrive
External drive
TCP/IP Stack
TCP
UDP
ARP
ICMP
IGMP
Socket interface
Sockets: 64
Internal device interfaces: 4
- Ethernet
- PPP server
- PPP client
- Loopback
TCP/IP applications
HTTP Webserver
FTP server
Telnet server
DHCP client
TFTP server (optional)
SNMP MIB variable support (optional)
UDP config server for @CHIP-RTOS upgrade
DOS-EXE Loader
Up to 12 DOS application programms can run as tasks of the RTOS
DOS-like command shell
Supports a subset of DOS commands and @CHIP-RTOS specific commands via Telnet, serial devices or user specific stdio
Scalable @CHIP-RTOS
Support of 6 different versions, including various @CHIP RTOS features
@CHIP-RTOS Upgrade via Ethernet/UDP or serial Bootstraploader
|
| |
Application Programmer Interface
RTOS
TCP/IP socketinterface
DOS interrupt 21h and others
Webserver CGI
Hardware
I2C
Software SPI (optional)
Serial devices (Fossil interface)
Ethernet packet driver (Add. use of ethernet for NON-TCP/IP purposes)
Special @CHIP-RTOS services
Serial filetransfer via xmodem
DOS application examples
RTOS API examples
TCP/IP API examples
- FTP client
- HTTP client
- Other TCP/IP examples
Webserver CGI examples
External IDE disk driver
Hardware API examples
I2C examples
Fossil examples
API examples written in Turbo Pascal
API C-Libraries
